FxMotion

The FxMotion is Freelap's premium chip specifically designed for athletics.

Led: Indicates device activation / Indicates the battery level.

Identifier (ID): Each chip (transponder) has a unique ID : 2 letters – 4 digits.

Charging pins : Used to charge the device.

Premium Bluetooth chip

The FxMotion is Freelap's premium chip (transponder) specifically designed for athletics. Worn by the athlete, it accurately measures the time intervals between each transmitter. This chip also includes reaction time measurement and stride analysis : frequency, length and number of strides.

Fx Motion

Time measurement between each transmitter, with up to 5 split points.

Instant Bluetooth transmission

Reaction time

Only with the e-Starter transmitter.

Stride analysis

Frequency, length and number of strides.

Freelap New FxMotion-temps de reaction foulee

The FxMotion chip is unique!

Each FxMotion has a unique identifier, allowing you to time several athletes simultaneously.

Installation

Activate it!

Place it vertically and shake it horizontally. The green LED confirms that the device is activated.

Attach it!

The FxMotion must be attached at waist level, centered in line with the navel, and positioned vertically.

Example 60 m setup (3 x 20)

FxMotion premium Bluetooth transponder + e-Starter + Tx Junior Pro

The FxMotion provides stride analysis during a sprint.

Minimum distance of 20 m between two transmitters to calculate the number of steps, average stride length and average frequency.

Maximum memory capacity : 1,000 steps per recording.

Minimum running speed : 18 km/h.

MEMORY

Download the last time

Your last time is stored in your chip's memory.

To download it to your MyFreelap app : start a training session in MyFreelap and shake your FxMotion.

> Your time is downloaded.

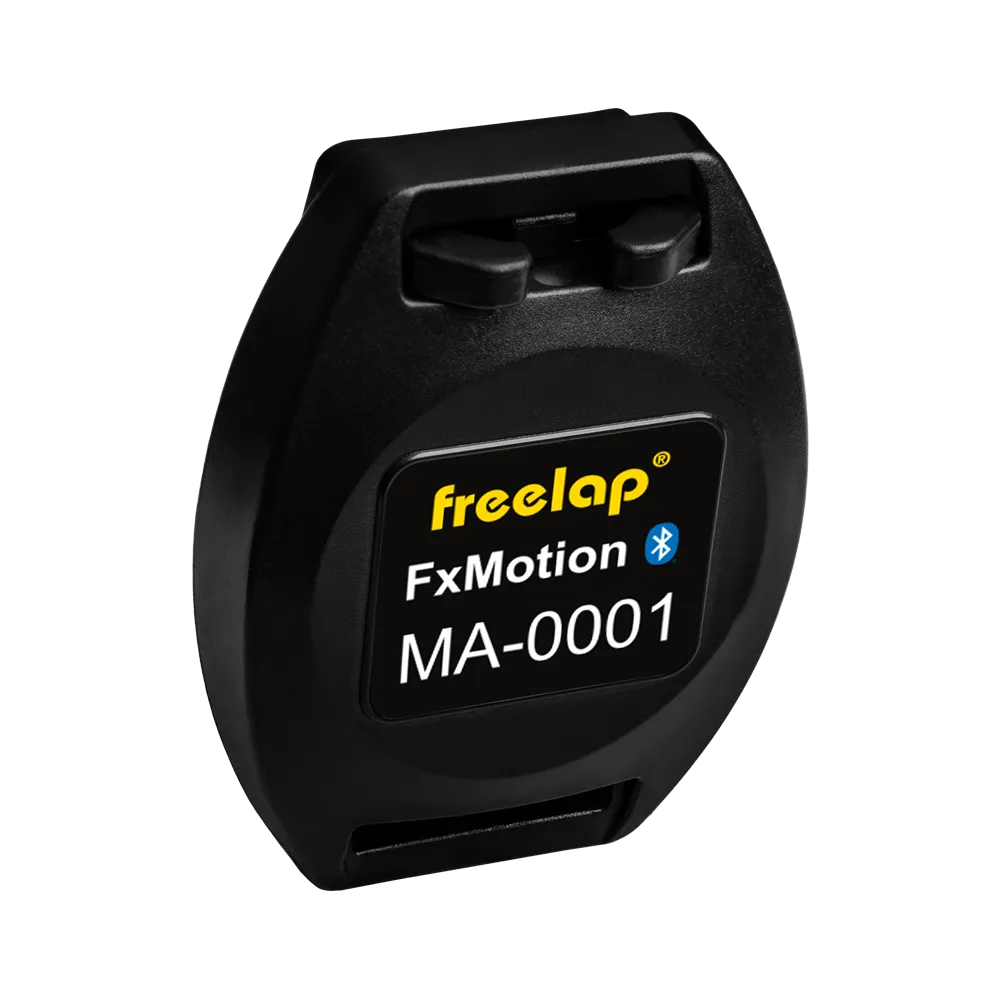

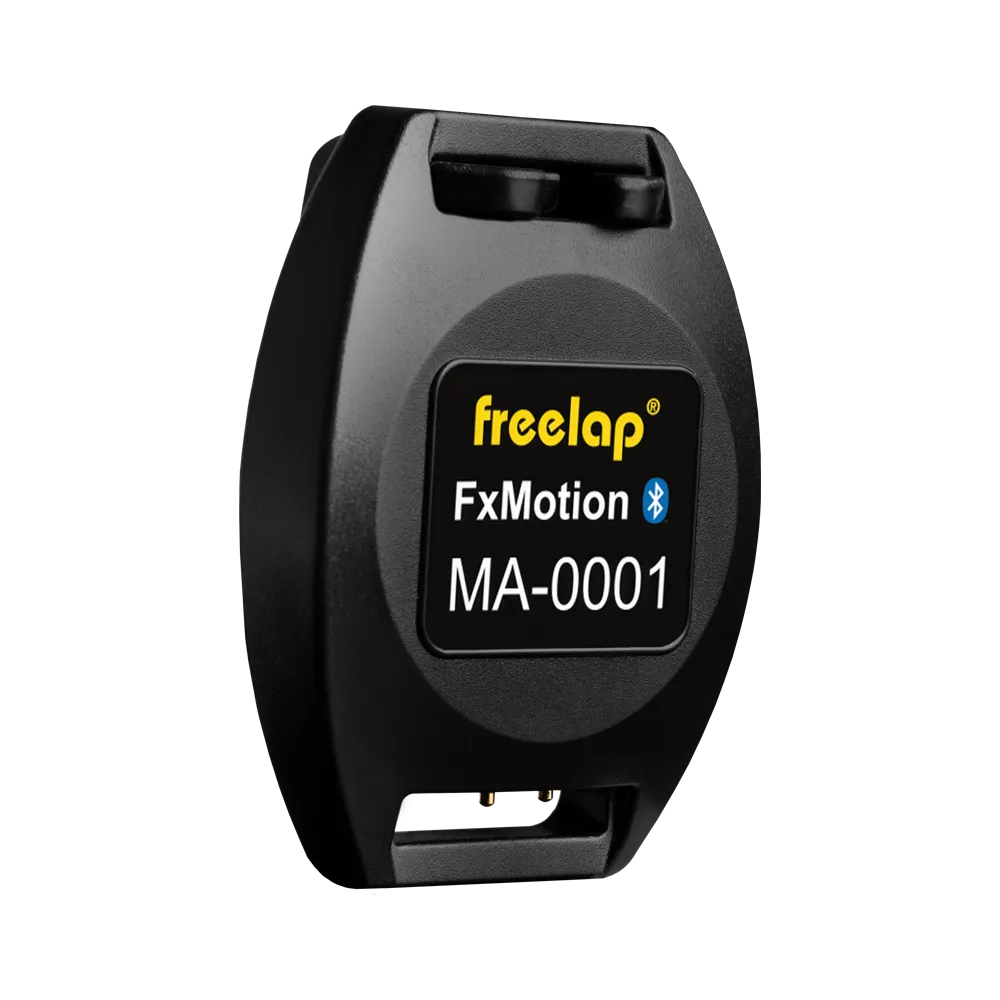

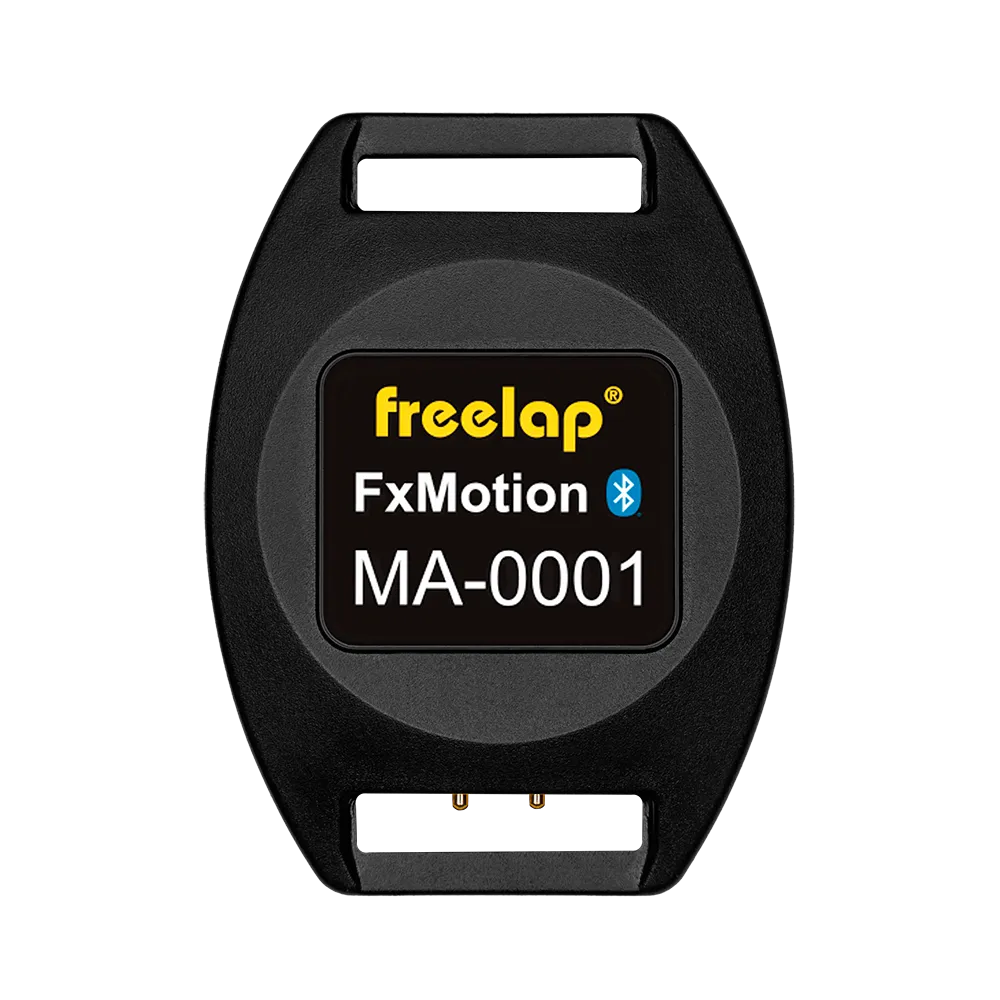

Freelap Chip FX Motion MA-0001 rechargeable

The FxMotion is rechargeable

Charge your chips (transponders)

Charge up to 6 chips at the same time.

Check its battery level

Thanks to the LED located on the top of the device.

Battery life

Battery life : 70 h of use
Charging time : 5 h

Technical specifications

Dimensions: 52 x 39 x 16 mm
Weight: 17 g
Technology: Bluetooth Smart (BLE)
Compatibility: e-Starter, Tx Junior Pro, Tx Touch, Tx Pad Pro and SpaceUnit
Accuracy: 1/100 of a second
Memory: 5 split times with stride analysis
Minimum time between 2 transmitters: 0.7 seconds
Battery: LiPo 3.7 V 80 mA
Battery life: 70 hours of use
Charging time: 5 h
Automatic shut-off: after 1 hour without detecting a Freelap transmitter
Water resistance: IP67
Operating temperature: -20°C to +50°C

User manual

Download (PDF)

https://www.youtube.com/watch?v=6oTurM7gESE

Click on the video to watch the full version, duration 4:21 min.
