Mx Start
The transmitter specially designed for start gate launches
Start transmitter

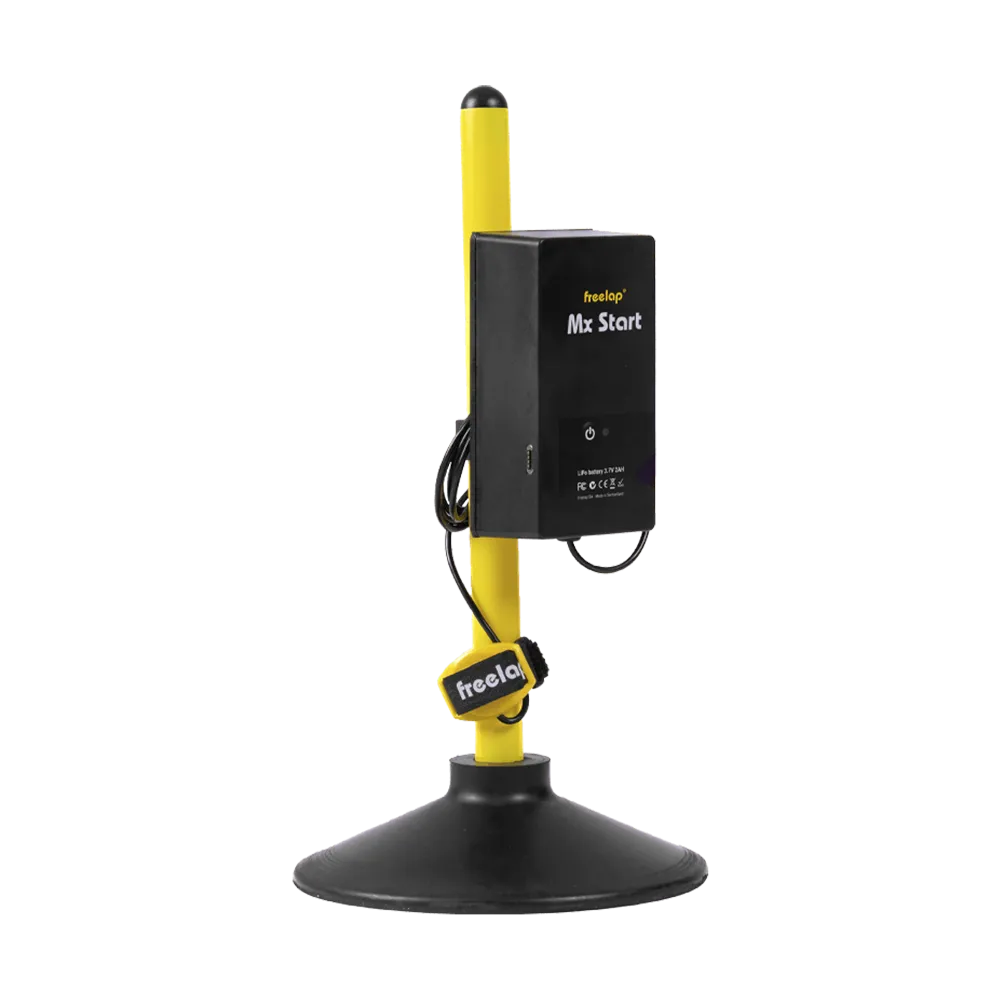

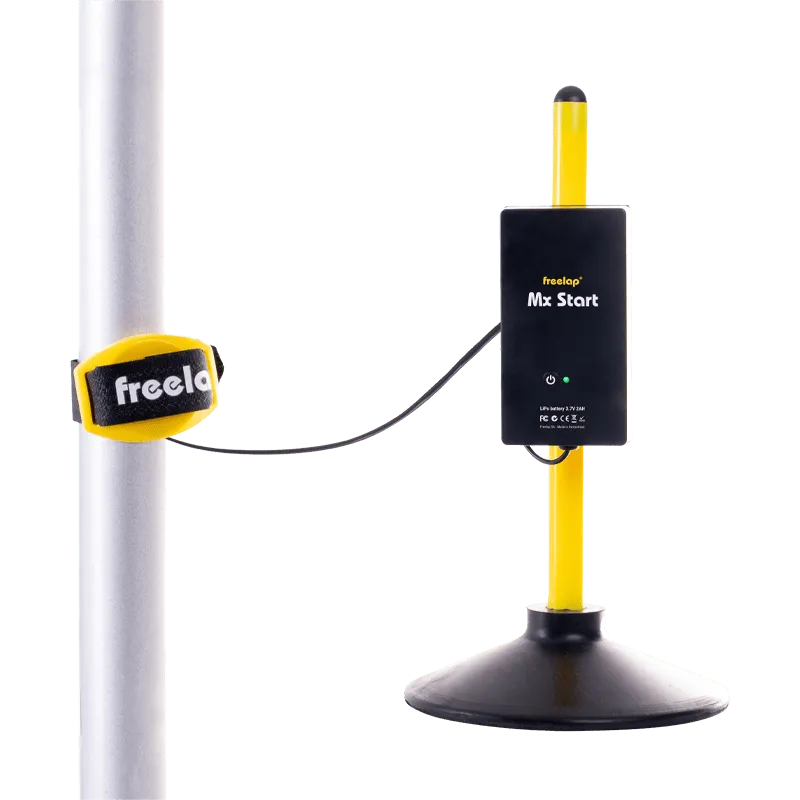

The Mx Start is the Freelap transmitter specially designed for motorbike start gate launches.
When the gate hits the ground, the Mx Start instantly triggers the transponder timer with 0.01-second accuracy.
- Accurate
Triggers the start with 0.01-second accuracy. - Realistic
The start is triggered instantly as soon as the start gate touches the ground. - Covers 2 riders
The Mx Start can cover 2 riders, with 1 rider on each side of the transmitter. - Compatible
Works with FxChip and FxChip BLE transponders. - Rechargeable
Charges using the supplied magnetic USB cable.

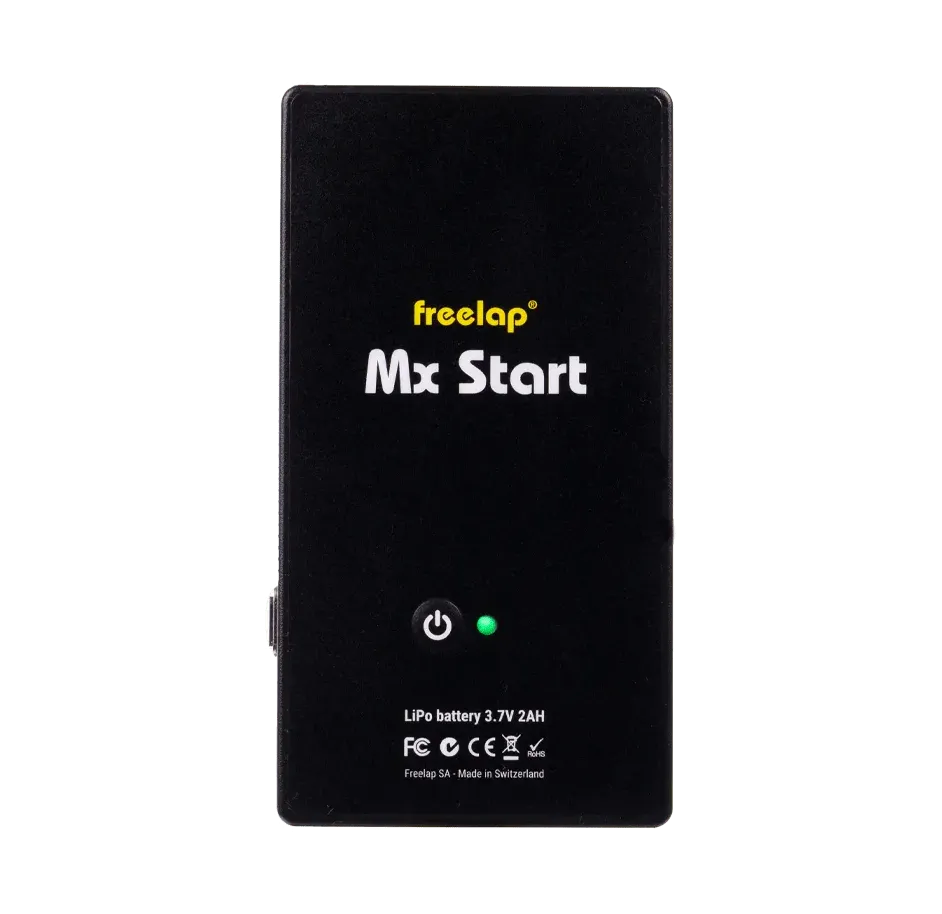

Power button: Used to turn the transmitter on/off.
PWR LED: Indicates whether the device is on with a green light or whether the battery is low with a red light.
Technical specifications
- Weight: 300 g
- Dimensions: 150 x 80 x 50 mm
- Compatibility: FxChip / FxChip BLE
- Transmitter with 1 code: START
- Detection distance: 1.5 meters on each side, left and right
- Minimum time between 2 transmitters: 0.7 s
- Accuracy: 0.01 seconds
- Battery: rechargeable 3.7 V 2 Ah LiPo battery
- Battery life: 500 hours
- Water resistance: IP67
- Temperature resistance: -20°C to +50°C
User manual
https://www.youtube.com/watch?v=6oTurM7gESE
The tool every rider needs for training sessions
Click on the video to watch the full version, duration 4:21 min.
